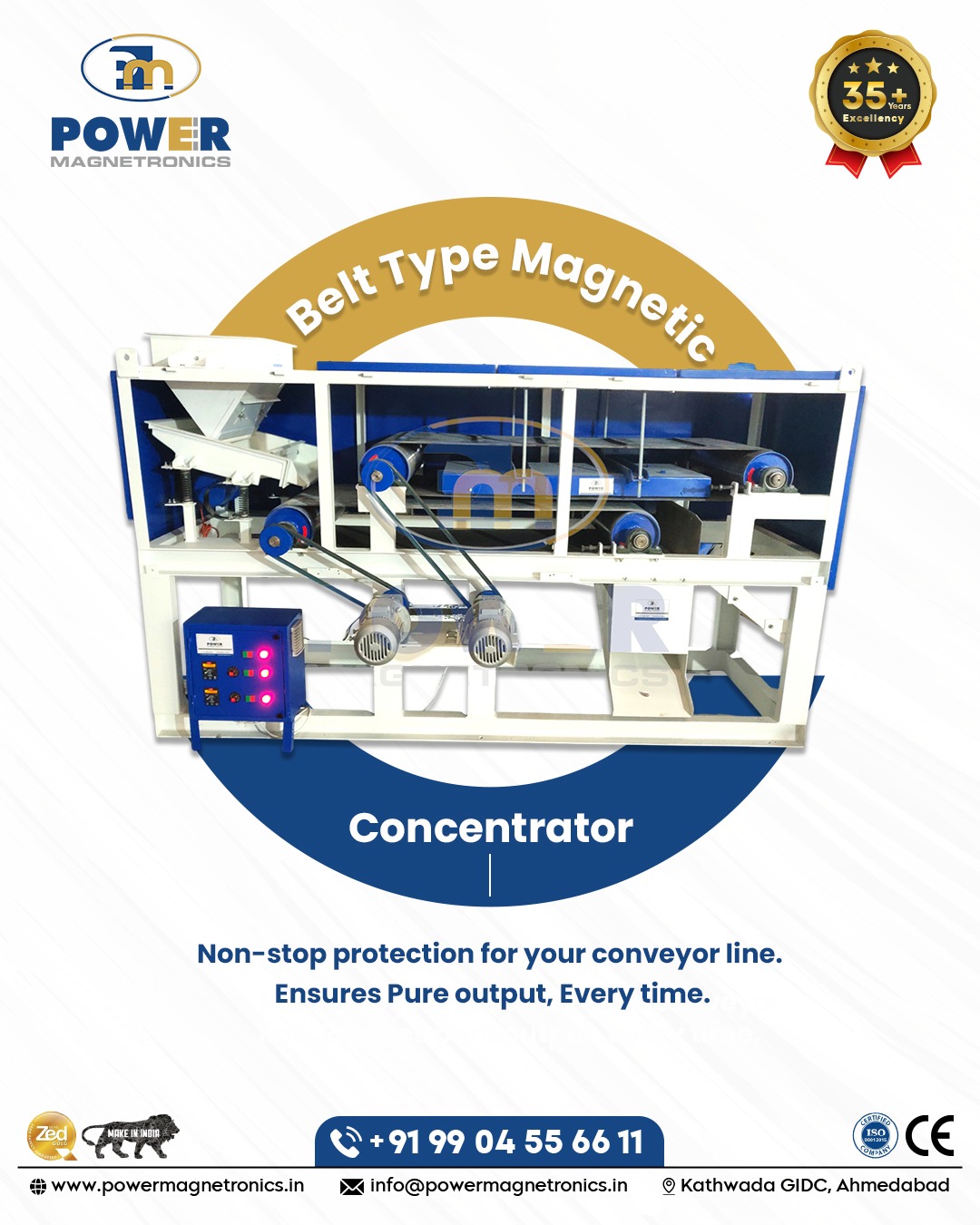

Belt Type Magnetic Concentrator Manufacturer in India
Power Magnetronics is a Belt Type Magnetic Concentrator Manufacturer in India, specializing in permanent magnetic concentration and separation systems for applications where magnetic and non-magnetic materials need to be upgraded, recovered or separated through controlled material movement and repeated exposure to magnetic fields.
A Belt Type Magnetic Concentrator is an advanced magnetic separation machine designed for difficult separation applications where conventional single-stage magnetic separators may not provide the required concentration or recovery.
Power Magnetronics Belt Type Magnetic Concentrator is particularly suitable for:
Sponge iron and char separation
DRI and sponge iron recovery
Cast iron boring cleaning
Magnetic mineral concentration
Bauxite upgrading
Ceramic and refractory material purification
Abrasive grain reclamation
Iron contamination removal from selected powders
Steel-processing applications
Industrial mineral beneficiation
The machine uses a controlled feed arrangement and two conveyor belts. Material is exposed to a sequence of magnetic fields, promoting repeated magnetic/non-magnetic segregation before the respective fractions are discharged. This working principle is described on Power Magnetronics' existing product page. �
Power Magnetronics
What Is a Belt Type Magnetic Concentrator?
A Belt Type Magnetic Concentrator is a continuous magnetic separation and concentration machine used to separate or upgrade mixtures containing magnetic and non-magnetic fractions.
Unlike a simple magnetic separator that may primarily remove unwanted ferrous contamination, a belt-type concentrator is particularly useful where the objective is to recover valuable magnetic material from a non-magnetic fraction or improve the concentration of a magnetic product.
The machine can be configured for different:
Feed capacities
Particle sizes
Belt widths
Belt speeds
Magnetic strengths
Material burden depths
Separation stages
Product recovery requirements
Power Magnetronics designs belt type magnetic concentrators according to the actual material and separation objective.
How Does a Belt Type Magnetic Concentrator Work?
The working principle combines controlled feeding, belt movement, magnetic attraction and repeated material agitation.
1. Controlled Feeding
The feed material is introduced through a suitable feeder, such as a motorized vibratory feeder.
Controlled feeding helps maintain a relatively uniform material layer.
2. Lower Conveyor
The material travels on the lower conveyor belt.
3. Magnetic Separation Zone
The material enters the region below the upper magnetic belt.
4. Repeated Magnetic Exposure
The upper belt incorporates a series of permanent magnetic fields arranged to expose the material repeatedly.
Power Magnetronics' existing design describes alternating magnetic polarities and repeated exposure to magnetic fields. �
Power Magnetronics
5. Magnetic Material Retention
Magnetic particles experience magnetic attraction and are retained toward the upper belt.
6. Non-Magnetic Material Separation
Non-magnetic material is less strongly attracted and falls back toward the lower conveyor.
7. Separate Discharge
The magnetic and non-magnetic fractions are discharged through separate outlets.
This staged movement is particularly useful for difficult magnetic concentration applications.
Why Use a Belt Type Magnetic Concentrator?
A conventional magnetic separator may be sufficient when the requirement is simply:
Remove magnetic contamination → Clean product
A belt type magnetic concentrator is more appropriate when the requirement is:
Separate a magnetic fraction from a non-magnetic fraction → Recover valuable material → Improve concentration
This distinction is particularly important in sponge iron/DRI processing and mineral beneficiation.
Belt Type Magnetic Concentrator for Sponge Iron and Char
One of the most important applications for Power Magnetronics Belt Type Magnetic Concentrators is separation of sponge iron from char.
Sponge iron and char mixt
