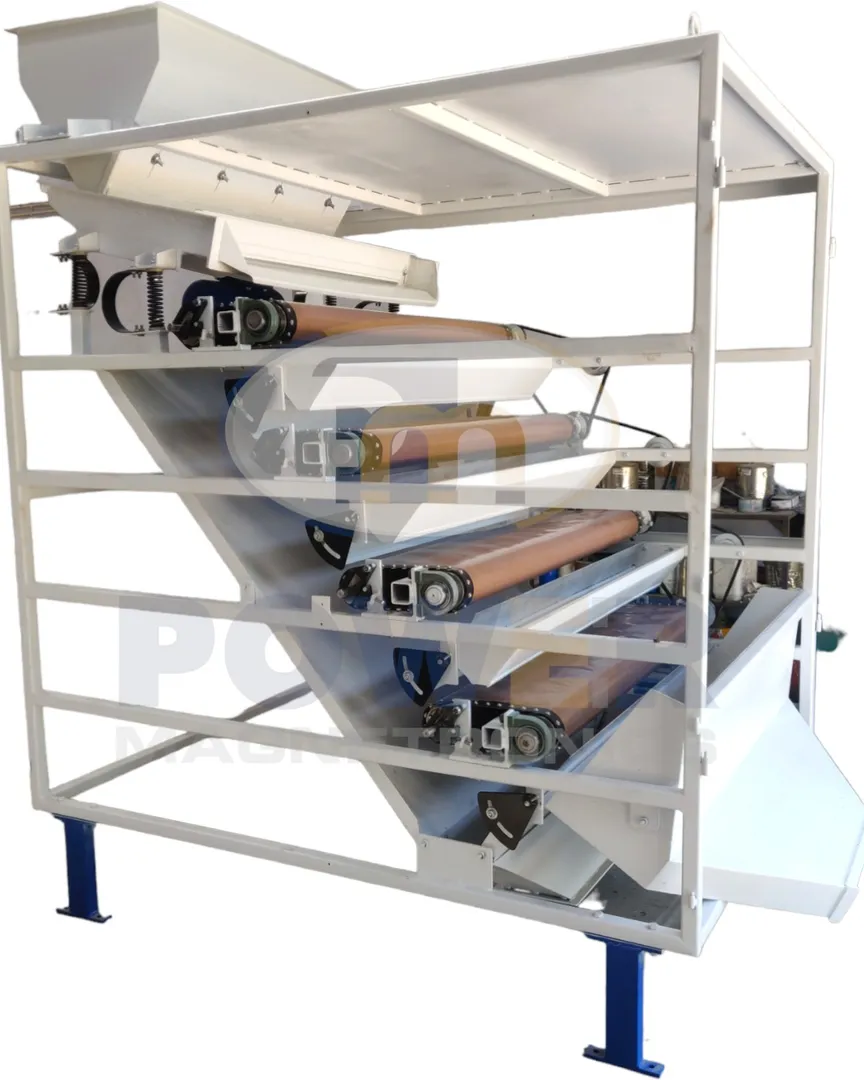

Power Magnetronics manufactures magnetic roller separators for separating ferrous and weakly magnetic contaminants from dry, free-flowing materials. Our magnetic roller separators are designed for applications where controlled material feeding, high magnetic intensity and precise separation are required.
Depending on the application, the separator can be configured with single, double or multiple magnetic rollers. The magnetic system, roller dimensions, belt arrangement and splitter position can be selected according to the material characteristics, feed capacity and required separation performance.
Magnetic roller separators are widely used in food processing, grain cleaning, spice processing, mineral processing, ceramic raw materials, glass materials and other industries where removal of magnetic contamination or recovery of magnetic particles is required.
What Is a Magnetic Roller Separator?
A magnetic roller separator is a continuous dry magnetic separation machine in which material passes over or around a magnetically active roller. Magnetic particles are attracted by the magnetic field while non-magnetic particles follow a different trajectory.
The difference in particle trajectory allows the material stream to be divided into separate fractions.
The final separation performance depends on factors such as magnetic susceptibility, particle size, feed rate, material layer thickness, moisture content and splitter position.
How Does a Magnetic Roller Separator Work?
The feed material is distributed uniformly onto a conveyor belt or suitable feeding system. As the material approaches the magnetic roller, particles that respond to the magnetic field are attracted toward the roller.
Non-magnetic particles continue along their normal trajectory and discharge away from the magnetic zone.
An adjustable splitter is positioned at the separation point to collect the different fractions separately.
For applications requiring higher separation efficiency or product purity, multiple magnetic rollers or multiple separation stages can be incorporated into the system.
Main Components
A typical magnetic roller separator consists of:
Magnetic roller assembly
Permanent magnet system
Conveyor belt
Feed arrangement
Drive system
Adjustable splitter
Supporting structure
Material collection arrangement
The configuration can be customized according to the application.
Key Features
High-intensity permanent magnetic system
Application-specific magnetic configuration
Single, double and multiple-stage options
Adjustable splitter arrangement
Controlled material feeding
Continuous operation
Customized roller diameter and width
Compact industrial construction
Low-maintenance design
Suitable for a wide range of dry materials
Applications
Magnetic roller separators can be used for magnetic separation applications involving:
Wheat and grains
Rice
Pulses
Spices
Cumin
Fennel
Flour and food powders
Quartz
Feldspar
Ceramic raw materials
Glass raw materials
Mineral products
Industrial powders
Recycling materials
The appropriate configuration depends on the material properties and required separation objective.
Industries Served
Power Magnetronics supplies magnetic separation equipment for applications in:
Food processing
Grain processing
Spice processing
Mineral processing
Mining
Ceramics
Glass
Chemical processing
Recycling
Foundry and other industrial applications
How to Select the Right Magnetic Roller Separator?
The correct magnetic roller separator should be selected according to the actual process conditions rather than magnetic intensity alone.
Important parameters include:
Material type
Particle size
Feed capacity
Material moisture
Bulk density
Magnetic susceptibility
Material layer thickness
Required product purity
Required recovery rate
Number of separation stages
For critical applications, material testing and application-specific trials can help determine the appropriate magnetic configuration.
