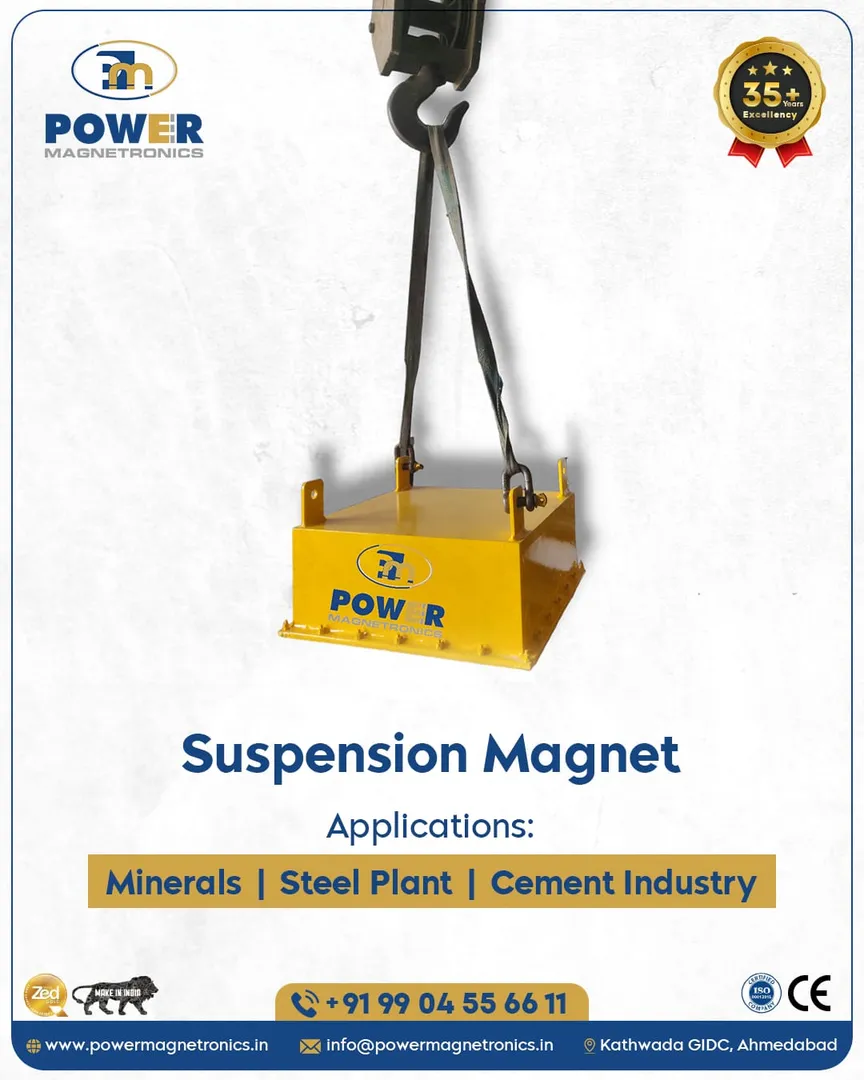

Suspension Magnet Installation

A suspension magnet can typically be installed:
Cross-Belt Arrangement
The magnet is positioned across the conveyor width above the material stream.
Inline Arrangement
The magnet is positioned in the material-flow path in a suitable configuration.
The preferred arrangement depends on:
Conveyor geometry
Material flow
Belt speed
Available installation space
Magnetic contamination
Required separation performance
Correct installation height is particularly important.
